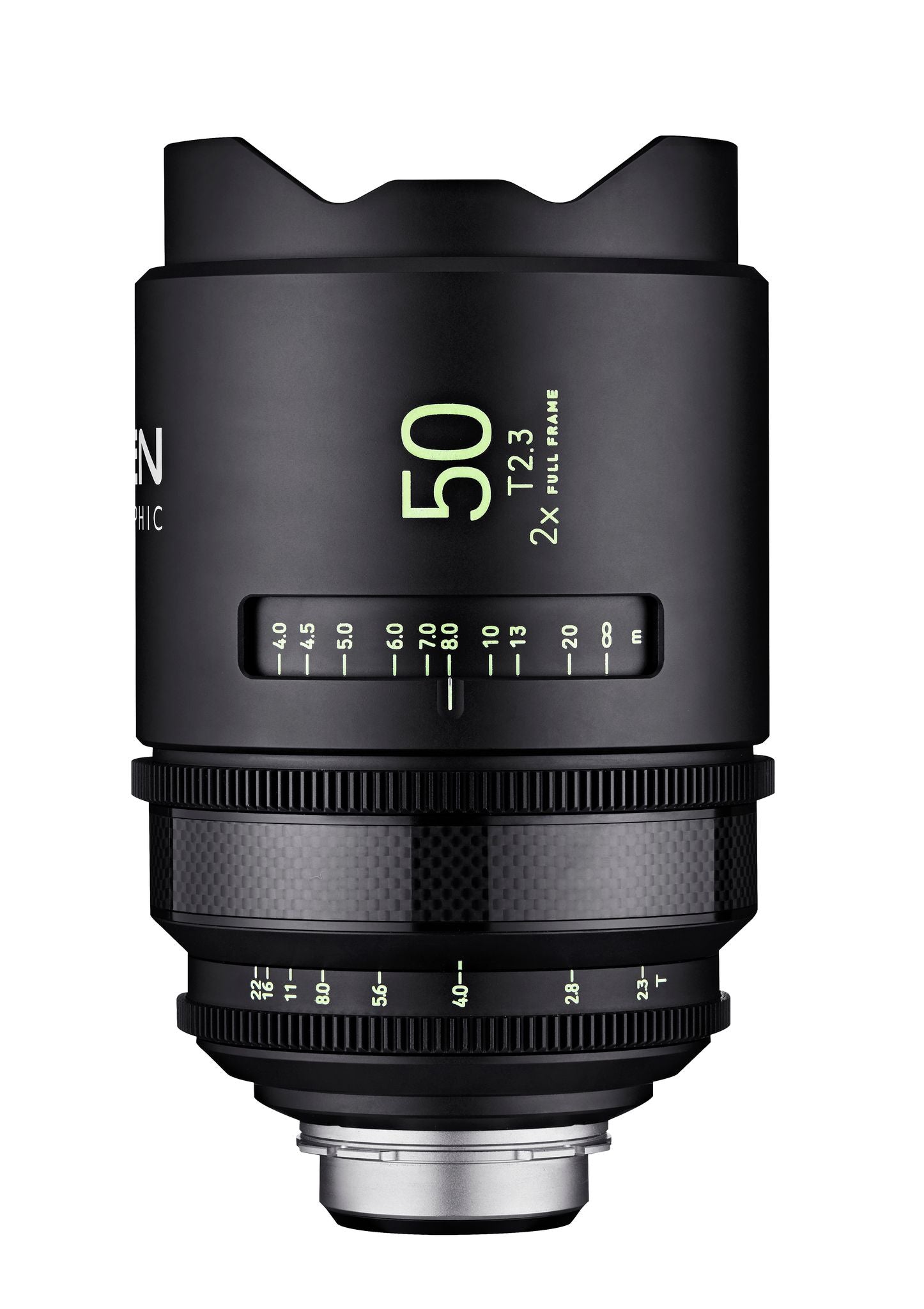

Samyang XEEN Anamorphic 50mm T2.3
XEEN Anamorphic
2x Anamorphic lens for high-end digital cinematography
Covers full-frame sensor
Compatible with PL mount
50mm T2.3
|
Compatible with |
 |
 |
2X Anamorphic :Magnificent & Highly Immersive After being de-squeezed, the XEEN Anamorphic 50mm T2.3 lens covers a 2.55:1 original cinematic cope ratio in a 35mm full-frame sensor in order to provide old films' own vintage look and a wider field of view and more attractive images from a horizontal angle of view. |
|
Carbon Fiber By applying carbon fiber, which is lighter than metal but solid and beautiful, to the lens body tube, it remains lightweight while maintaining durability. |
 |
 |
Outstanding Usability Designed to 114mm standard front diameter size it is easily compatible with 4x5 Matte Box. All scales, including focal length and aperture values, are on both sides of the lens and with the luminous font that glows in the dark, enabling convenient verification and operation, even in low light environments. 300° wide focus gear rotation angle makes you adjust focus minutely. |
Specifications
Model Name: XEEN Anamorphic 50mm T2.3
Maximum T-stop: T2.3
Image Circle: Ø 43.2 mm
Angle of View Full Frame: H: 68.4˚, V: 26.9˚
Super 35: H: 50.0˚, V: 20.5˚
Focusing Range: ∞ to 1.0m
Focusing Range: ∞ to 3.3ft
Front Diameter: Ø 114mm
Number of Aperture Blades: 15
Rotation Angle of Focus Ring: 300°
Rotation Angle of Aperture Ring: 89.5°
Mount: PL
Size: Ø128.0 x 198.6mm
Weight(Without Lens Cap): 3.9 kg
Squeeze Ratio: X2
Focus Drive Gear: 158 teeth 0.8 metric module x 8.0mm wide x 121mm from the image plane
Iris Drive Gear: 136 teeth 0.8 metric module x 7.0mm wide x 75mm from image plane
